The Joint Is the System, Part 2: The Insulation Is in the Duct
A factory-built zero-clearance grease duct carries its insulation inside the duct, section by section. The rating is decided at the thirty or forty joints where those sections meet.

Cut a section through a double-wall grease duct on a detail sheet and it shows three concentric things: an inner liner, a band of insulation, an outer jacket. The hatch pattern for the insulation runs unbroken from one edge of the detail to the other.

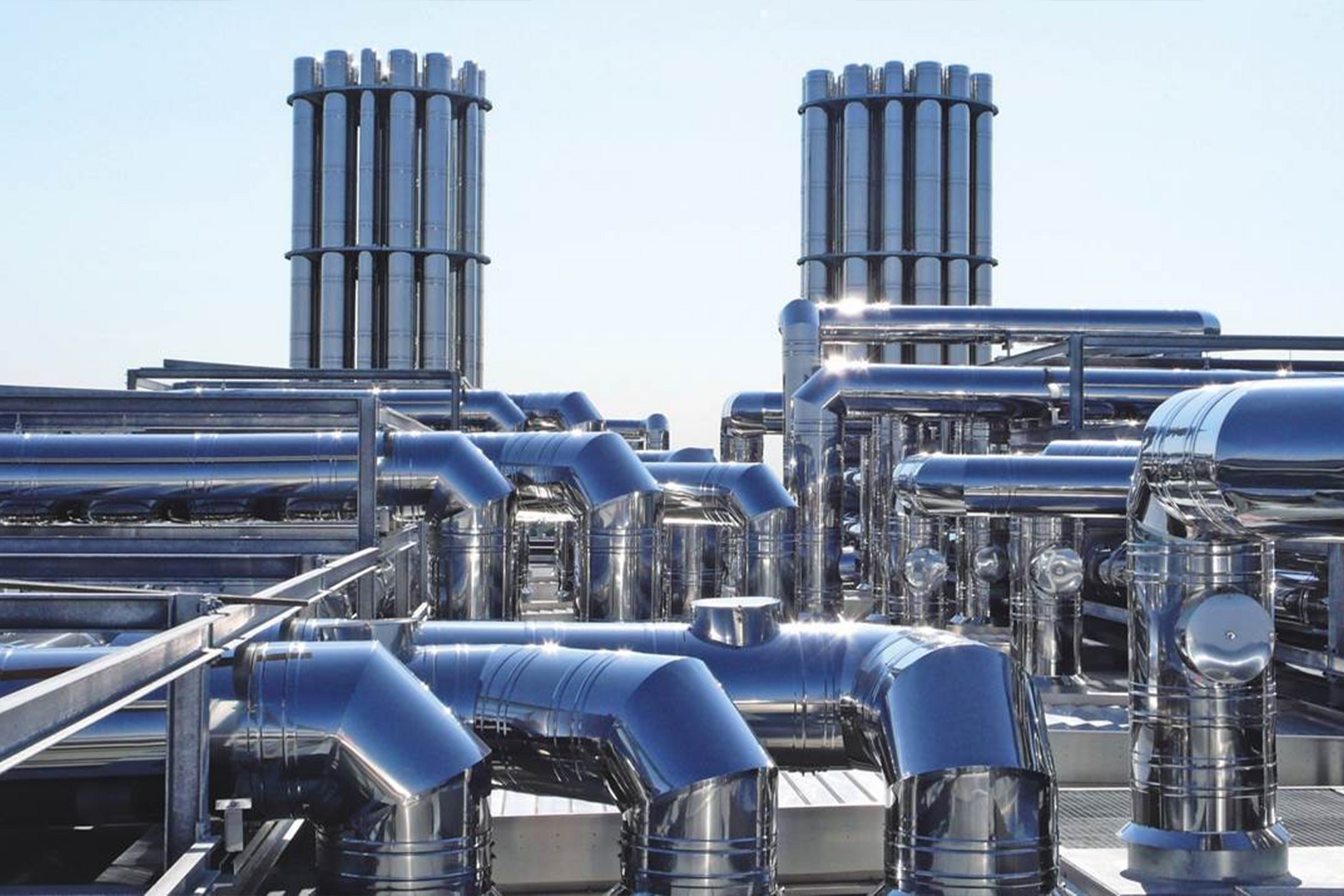

The Joint Is the System
A grease duct is not one object. It is a few dozen connections in series — and every one of them has to do six jobs at once.

Draw a grease duct on a page and it looks like a single continuous thing: a line running from the hood collar, across the ceiling cavity, up a chase, out through the roof. One element. One line weight. One entry in the schedule.
