    1. Commercial Exhaust Systems
    2. Double wall systems

    DW-POWER

    Stainless steel all fuel system

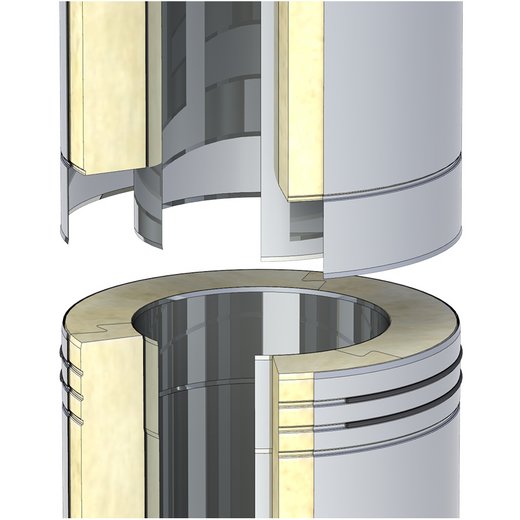

    The name says it all: our double-walled exhaust system DW-POWER is the perfect solution for any application requiring high pressure and high exhaust temperatures in non-condensing operation. This is typical for applications such as generators without heat exchangers, emergency power systems, and various industrial processes. A special feature of this system is the seals located at the socket ends of the outer casing. This design not only ensures a long service life but also allows for stress-free thermal expansion of the exhaust-carrying inner pipe, making the use of compensators unnecessary.

    For maritime use, the system has special approvals from the DNV GL Group and Lloyd's Register of Shipping.

    SYSTEM_DETAIL_ICONS


    Product description

    Characteristics

    • • Easy to install and disassemble
      • For high temperatures up to 1112°F
      • Pressure-tight up to 20” W.C.
      • Components resistant to saltwater (optional)

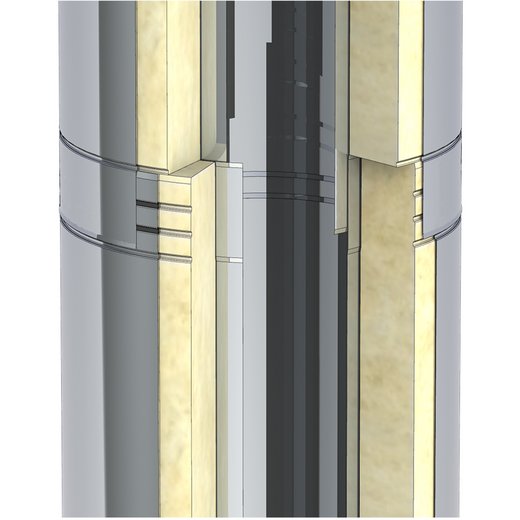

      • Gaskets in the outer casing
      • Stress-free thermal expansion of the inner tube possible
      • No expansion joints/compensators required

    Applications

    • Ship´s main engines
    • Auxiliary engines

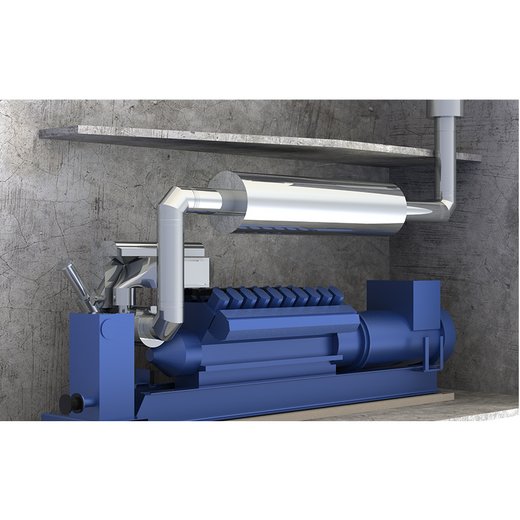

    • Emergency generators / emergency power systems
    • Gas and diesel generators (without heat exchanger)
    • Industrial processes

    Technical specifications

    Materialinside: 1.4404 (316L)
    outside: 1.4301 (304)
    more on request
    SurfaceHigh gloss
    Optional: matt
    Wall thicknessinside: 0.01 in.
    outside: 0.02 in.
    Diameter3.94 - 23.62 in.
    InsulationMineral insulation with a thickness of 2.26 in.
    ConnectionPlug connection inserted (outer pipe)
    Clamping bandincluded
    Sealingseals installed in the outer pipe
